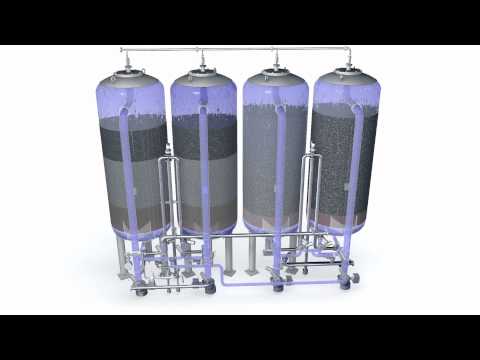

The module filters and adsorbs any unwanted and undissolved water content (suspended solids and odorants, organics, chlorine, iron, manganese, etc.) with different filter media (e.g. silica sand, manganese oxide, basalt and activated carbon).

Benefits to you

High hygienic standard

The filtration line is fully designed in stainless steel. This way, the entire line can be fully satinised with hot water.

Perfect filtration performance

The so-called fill of the filter media is selected targeted and individually adjusted to the respective application. This leads to optimal filtration results.

Gentle on the resources and the filter media

Filter media that ideally harmonise with each other, prolong the filtration cycles and minimise the necessary frequency of back-flushing. This saves water and increases the life cycles of most filter media.

Flexible line configuration

The modular line construction enables an easy expansion of the Hydronomic.

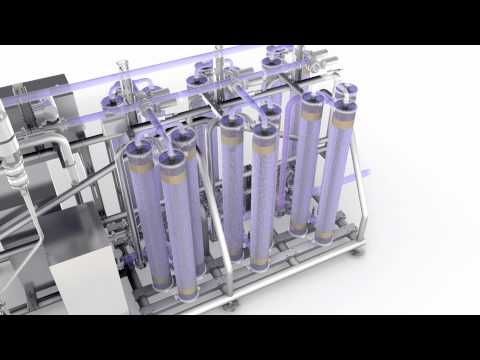

The Hydronomic UF uses the most up-to-date membrane technology with hollow fibres (pore size of 0.02 µm) for the ultrafiltration of water in in/out operation. Typically, ultrafiltration is also used to extend the production time of an (optional) downstream reverse osmosis system by additionally filtering the water.

Benefits to you

Energy-efficient

In order to reduce the energy consumption, hollow fibres are used for filtration. They require less pressure and offer a larger filter surface.

Effective cleaning

The In/out concept offers optimum conditions for the effective and safe cleaning of the hollow fibre membranes. The high-end variant can do without chemical disinfectants, as the line is sanitised with hot 85 °C water.

Non-interrupted operation – also during back washing

Thanks to the bypass structure of the filtration elements, the individual modules can be cleaned during the operation by backwashing with the ultra filtrate. This way, the usually used decoupling tank and its belonging backflushing pump are not required.

High-quality line concept

The Hydronomic UF is equipped with high-quality components, both in its stainless steel design and in its basic version. This way, the line is designed especially for a long service life.

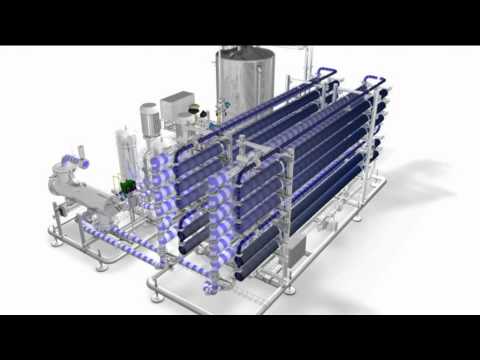

The Hydronomic RO module serves to desalinate water down to a usual residual content of less than three percent. The generated water is then especially treated/remineralised for the respective application.

Benefits to you

Economic structure of the individual banks

If the conductance in the permeate is changed, the reverse osmosis elements can be tested inline and checked for malfunctions. Faulty elements can be replaced targeted and cost-saving.

Economic in the use of energy

Depending on the pre-pressure of the untreated water, the permeate performance is regulated. This provides a low energy consumption and a constant recovery rate.

Long-term guarantee

The investment in the high-end variant which can be sanitised with hot water pays off: The omission of chemical cleaning agents increases the service life of the membranes. The guarantee can optionally be prolonged by up to five years.

Modular structure with long service life

A long service life is achieved through the deliberate choice in favour of a modular system design and a high manufacturing quality. Thanks to their large overall size, there is only little stress on the membranes which therefore achieve long service lives.

Suitable rinsing steps with permeate

In order to prevent scaling, the line contents will be rinsed with permeate when needed.
