Range of applications

• Juice and tea products in high and low-acid range
• Products with
  • Particles up to 5 x 5 x 5 millimetres
  • Fibres up to 2 x 10 mm

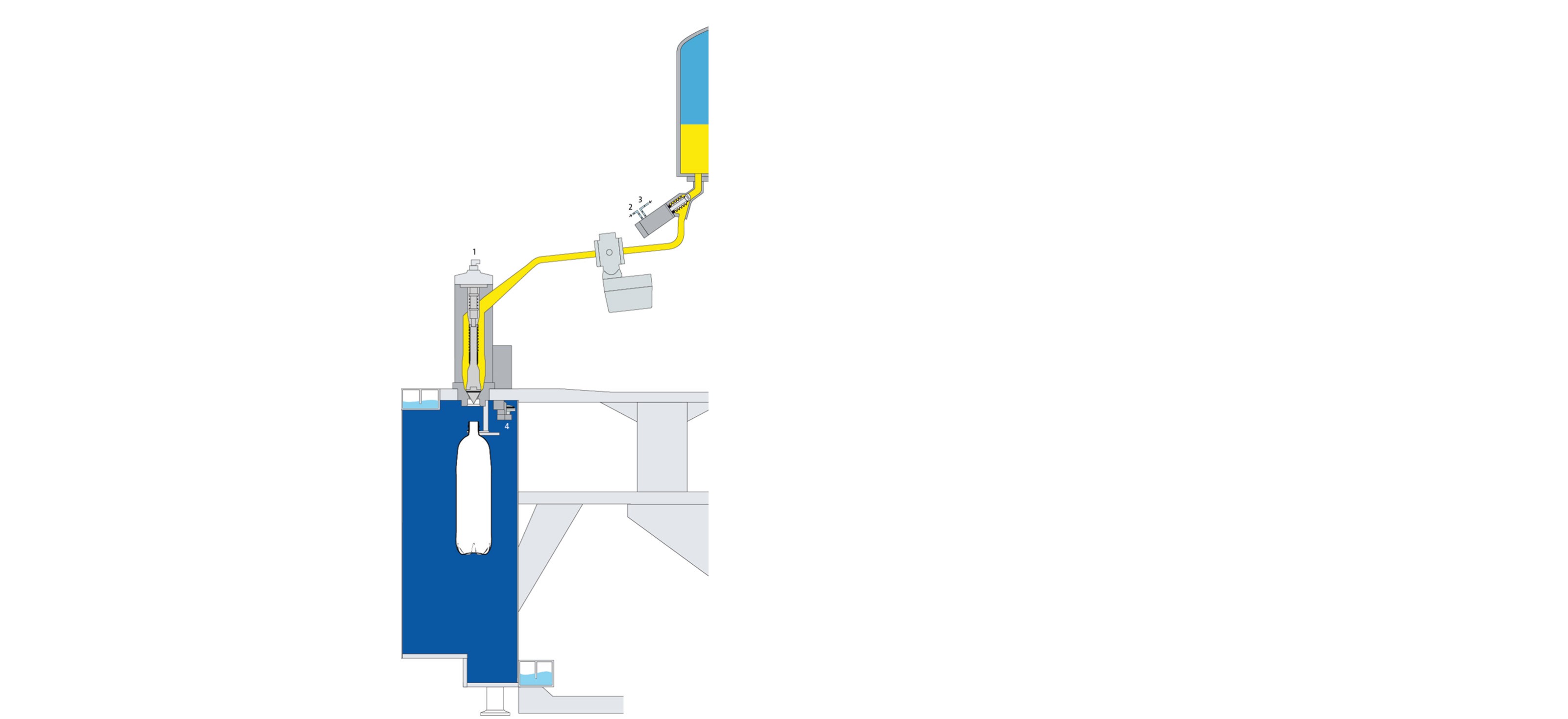

Technical features

• Non-contact full-jet filling
• Inductive flow meter for determining the quantity of liquid
• Two different filling speeds via product-gentle double-stroke seat valve
• Non-turbulent closing of the filling valves thanks to double-stroke seat valve
• Product feed from above via a sliding ring manifold
• Sterilisation with steam

VFJ: Volumetric filling, Flow meter, full Jet

• High microbiological safety
• Precise fill quantities
• Optimum flow behaviour
• Smooth filling process which is gentle on the product
• Minimum product loss
• Quick and media-efficient disinfection
• No CIP distributor needed
